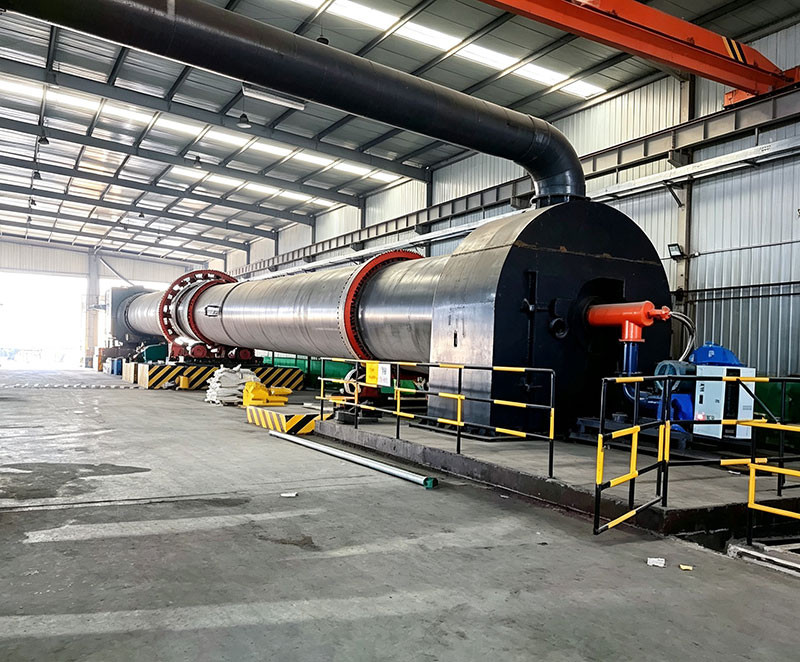

Henan Hongke Heavy Machinery Co., Ltd. is proud to share the success of a recently completed Φ 2.5×45m catalyst rotary kiln project at a customer site in Shizuishan, Ningxia, China. This project reflects our commitment to delivering specialized, reliable calcination solutions for the chemical catalyst industry.
Why This Customer Chose Us
Our customer in Shizuishan is a well-established chemical manufacturer producing catalysts for the petrochemical and environmental protection sectors. They had been using older batch-type equipment that couldn’t deliver the quality or output they needed. They needed a partner they could trust—someone who understood their process and could deliver a system that worked, day in and day out.
After evaluating several suppliers, they chose Henan Hongke Machinery for a few key reasons:
Specialized catalyst expertise – We understand that catalysts are sensitive materials. Our indirect-fired kiln design keeps the product completely separate from combustion gases, so purity is never compromised.
Tailored to their needs – We didn’t try to sell them a generic machine. We worked closely with them to design a system that fits their specific catalyst formulation and production goals.
Precision temperature control – Catalyst calcination requires ±5°C accuracy across multiple heating zones. Our system delivers exactly that.
Inert gas capability – Many catalyst grades need nitrogen or other controlled atmospheres. Our sealing system makes that possible.
Brand-new equipment – They wanted a purpose-built system, not a refurbished or repurposed unit. That’s exactly what we delivered.
What We Supplied
A complete catalyst calcination line built around a Φ 2.5×45m indirect-fired rotary kiln.
| Key Feature | Specification |
|---|---|
| Kiln size | 2.5 m diameter × 45 m length |
| Heating method | Indirect external heating (gas-fired furnace shroud) |
| Temperature range | 400–1,000°C (zoned control) |
| Temperature accuracy | ±5°C |
| Atmosphere | Air, nitrogen, or reducing gas – fully controllable |
| Kiln inclination | 3–4% |
| Drive system | Heavy-duty gear drive with variable frequency control |
The system includes:
Precision screw feeder for consistent material feed
Multi-zone heating furnace with independent zone control
Inert gas sealing system
Product cooling section for direct packaging
Multi-stage dust collection
PLC-based automation with full data logging
How the Catalyst Calcination Process Works
The calcination process in this indirect-fired rotary kiln serves multiple critical purposes:
| Process Stage | What Happens | Why It Matters |
|---|---|---|
| Heating | Material is gradually heated in the first zone | Prepares material for chemical changes without thermal shock |
| Removal of impurities | Bound water and organic residues are driven off | Prevents catalyst poisoning; ensures purity |
| Crystal formation | Active components transform to the required crystal phase | Determines catalyst activity and selectivity |
| Surface development | Pore structure and surface area are finalized | Affects how well the catalyst contacts reactants |
The material's residence time in the kiln is controlled by adjusting rotation speed and kiln inclination. This flexibility allows the customer to fine-tune product characteristics for different catalyst grades.
Trial Run Results – Performance Confirmed
The trial run was a complete success. The system performed exactly as designed:
Temperature stability achieved – All heating zones reached and maintained setpoint temperatures within ±5°C, ensuring consistent product properties batch after batch.
Inert atmosphere maintained – The sealing system held the required gas environment throughout operation, protecting sensitive catalyst materials.
Product quality verified – Initial test batches met all customer specifications for surface area, pore structure, and mechanical strength.
Continuous operation – The system ran smoothly with automated monitoring and minimal operator intervention.
What This Means for Our Customer
The successful commissioning of this catalyst rotary kiln delivers measurable benefits:
| Benefit | Value |
|---|---|
| Consistent catalyst quality | Uniform activity, surface area, and mechanical strength – fewer rejects |
| Product purity | Indirect heating prevents contamination from combustion gases |
| Process flexibility | Multi-zone temperature control supports different catalyst grades |
| Full traceability | Data logs for quality certification and customer reporting |
| Lower operating costs | Efficient heating design reduces fuel consumption |
| 24/7 reliability | Built for continuous operation with minimal downtime |
| Reduced labor requirements | Automation minimizes manual intervention |
About Henan Hongke Heavy Machinery Co., Ltd.
Henan Hongke Heavy Machinery Co., Ltd. (Henan Hongke Machinery) has been designing and manufacturing industrial processing equipment since 2006. Our product portfolio includes:
Rotary Kilns – for catalysts, lime, dolomite, zinc oxide, and mineral calcination
Rotary Dryers – for sludge, biomass, and industrial materials
Ball Mills – for ore, slag, cement, and chemical grinding
Crushers – for primary and secondary size reduction
We serve customers across China and international markets, with a focus on practical solutions, on-time delivery, and reliable after-sales support. From initial engineering to installation guidance and commissioning, we stay with our customers every step of the way.
Building Long-Term Partnerships
At Henan Hongke Heavy Machinery, we believe that a successful project is the beginning of a long-term relationship. Our commitment to our Shizuishan customer extends beyond delivery:
Technical support – We provide ongoing advice on process optimization and troubleshooting
Spare parts availability – Critical components are stocked for quick delivery
Maintenance guidance – Our team helps develop preventive maintenance schedules
Future upgrades – We can support capacity expansion or process changes as their business grows
Let's Talk About Your Catalyst Project
Whether you need a new catalyst calcination system, an equipment upgrade, or technical advice on thermal processing, we're here to help.
Contact Henan Hongke Heavy Machinery Co., Ltd. – we'll listen to your needs and deliver equipment that works, day after day.
